-2,300.00฿

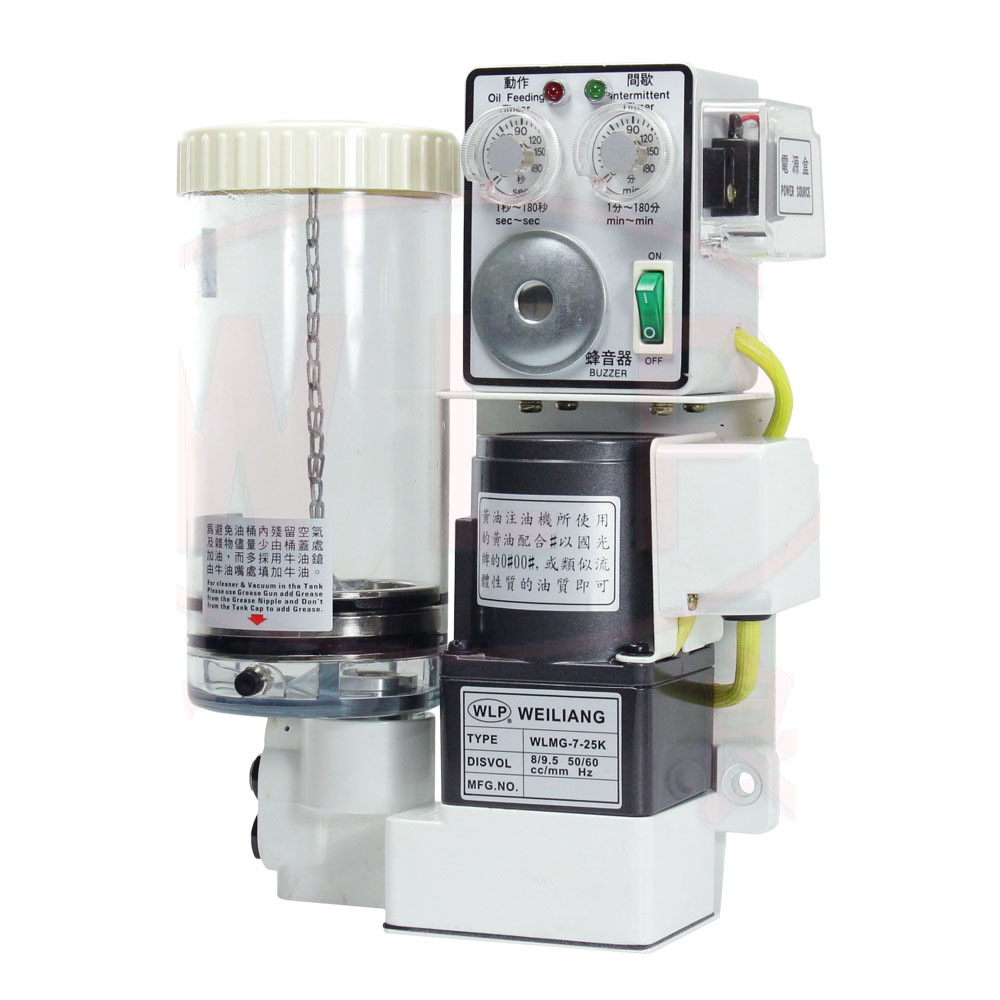

WLMG-7B-3HRS ปั้มจ่ายจารบีไฟฟ้า 25W.220V. พร้อมระบบตั้งเวลาทำงาน ถัง 1 ลิตร
• ปั้มจ่ายจารบีทำงานด้วยมอเตอร์ไฟฟ้า 25w /220v.
• เหมาะสำหรับเครื่องจักร ในอุตสาหกรรมทั่วไป
• สินค้าคุณภาพจากใต้หวัน
Product Description
ปั้มจ่ายจารบีทำงานด้วยมอเตอร์ไฟฟ้า / Electric Grease pump,WLMG Series,Controlled by Timer,Tank 1L
Code : WLMG-7B-3HRS
• WLMG SERIES
Grease lubrication conditions:
► After installing the pipe to the oil ministry were unable to implement frequent inspection and maintenance work for many reasons, do not need to replace the use of oil, due to the cooling effect is less, so the sliding velocity smaller place, a place to produce high temperature, and can not prevent cutting or grinding powder when mixed or contaminated debris and other foreign matter, and bearing a large batch.
► With butter to light card # 0, # 1, or about the fluid nature of the butter can be.
Specification รายละเอียด
• Outpet (cc) : 8/9.5 cc
• Discharge Pressure (kg/cm2) : 130
• Out let : 1/8″ PT
• Tank Vol. (cc) : 1,000
• Motor : 25 W.
• Voltage : 220V
• Amper : 0.2A
• Pole : 4
• Hz : 50/60
• Weight น้ำหนัก : 5.3 kg
| ADVANTAGES OF LUBRICATION WITH GREASE |
| * PERMITTING PIPING OF LOW COSTS BECAUSE OF THE EXECUTION OF LUBRICATION BEING SIMPLER THAN OIL LUBRICATION OR OTHERWISE, LUBRICATION TREATMENTS. |
| * PERMITTING AN OIL FEEDING THAT IS JUST RIGHT IN RESPECT OF AMOUNT BECAUSE OF SMOOTHER CONNECTION BETWEEN THE LUBRICATION SURFACES, THEREBY PREVENTING LEAKAGE OF REDUNDANT OT SURFEIT OF OIL FEED THAT WOULD OTHER WISE CONTAMINATE THE FROUND. |
| * LESSER ENTRAINMENT OF DUSTS OR FOREIGN MATERIALS TO THE OIL FEEDING INLET. |
| * REPLACEMENT OF OIL IN USE NOT REQUIRED AFTER INSTALLATION OF PIPING NETWORK WHEREIN A LOT OF ISPECTION AND MAINTENANCE WORKS. |
| * WHERE SLIDING SPEED IS LESS AND HIGH TEMPERATURE PREVAILS DUE TO LESSER COOLING EFFECTS. |
| * CLEARANCE OF THE BEARING SHOULD BE GREATER WHERE INFILTRATION OF OR CONTAMINATION BY FOREIGN MATERIALS SUCH AS CHIPS OF MACHINING OR DUSTS. |
| น้ำหนัก | 5.3 kg |
|---|
