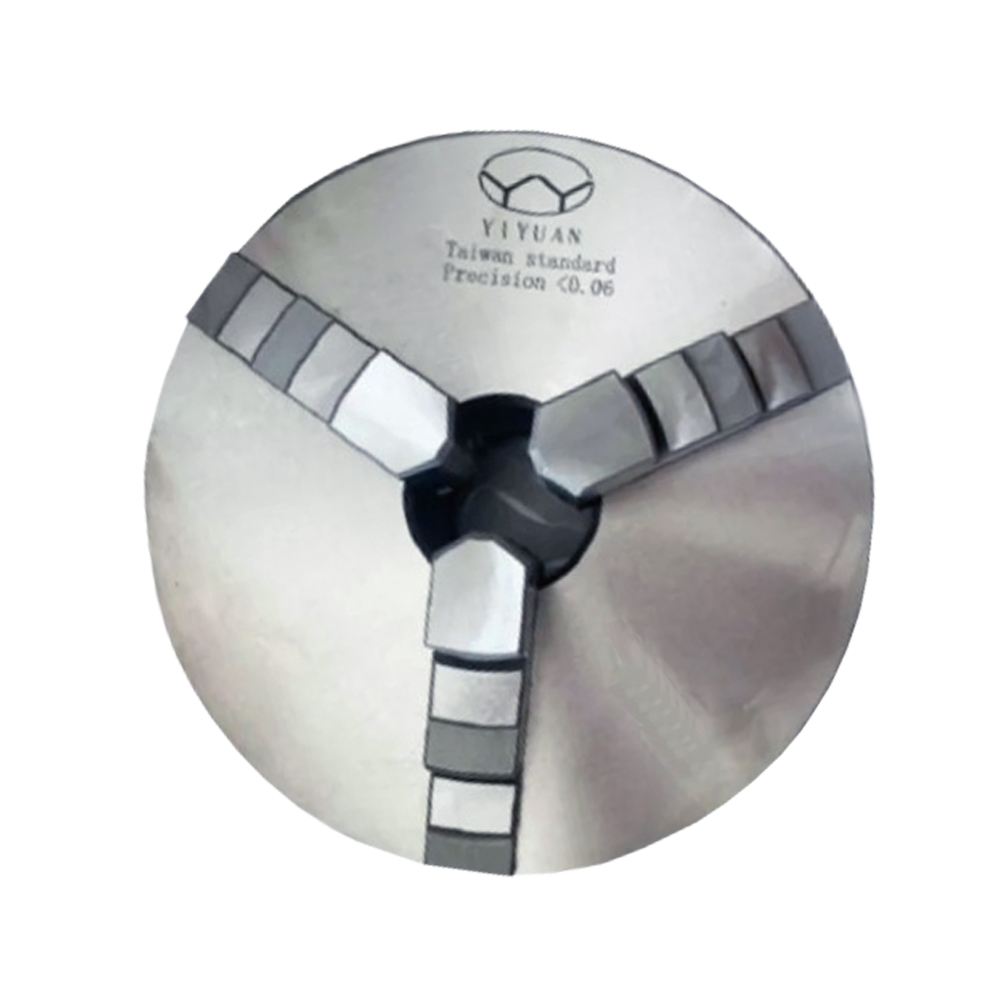

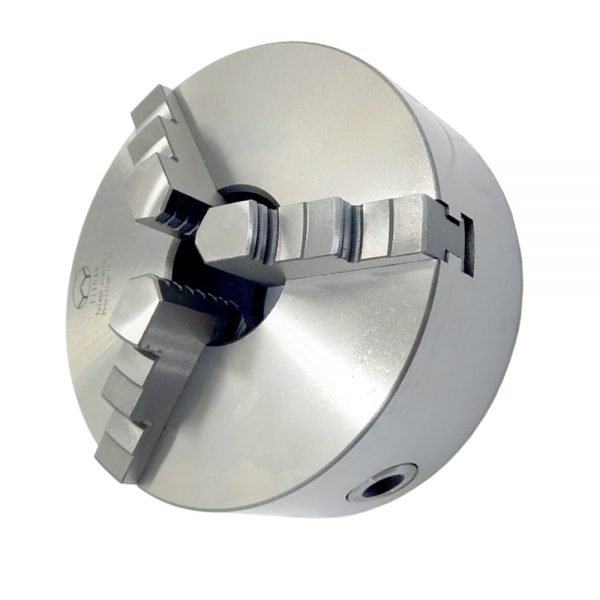

K11-125 หัวจับแท่นกลึง 3 จับ 5 นิ้ว

Product Description

K11-125 หัวจับแท่นกลึง 3 จับ 5 นิ้ว

Code : K11-125

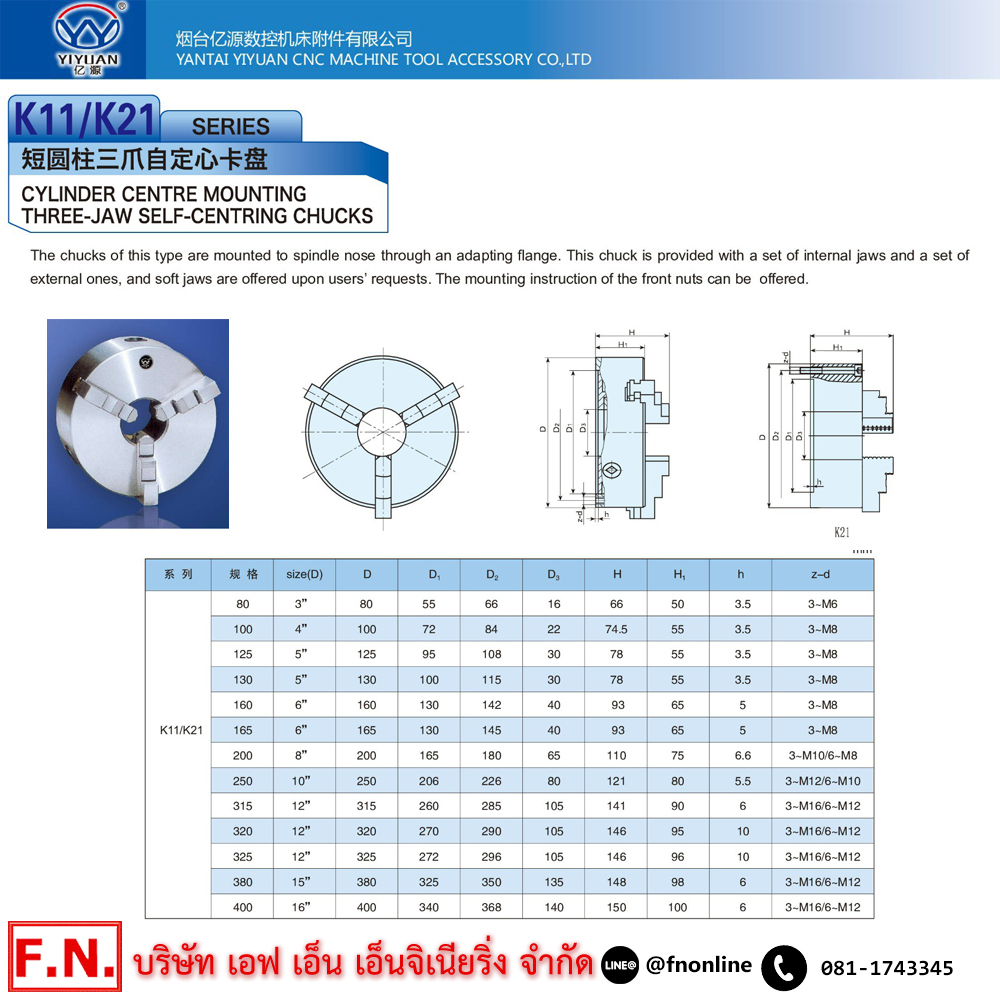

CYLINDER CENTRE MOUNTING THREE-JAW SELF-CENTRING CHUCKS

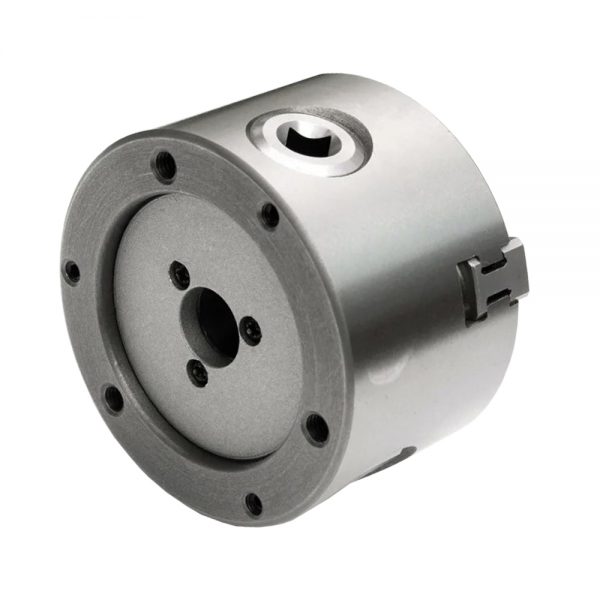

• The chucks of this type are mounted to spindle nose through an adapting flange.
• The chuck is provided with a set of internal jaws and a set of external ones, and soft jaws are offered upon users’ requests.
• The mounting instruction of the front nuts can be offered.

Specifications ข้อมูลจำเพาะ

• ขนาด : 125 mm. (5″)
• Max RPM: 3000 r/min
• Jaw: 3 Jaw
• Clamping ช่วง A-A1: 25-40 MM.
• Tight Range : B-B1: 38-125 MM.
