IMCO ดอกเจียรคาร์ไบท์ทรงเตเปอร์ รุ่น SL
• สินค้าคุณภาพจาก U.S.A.
• สั่งซื้อ โปรดระบุ รุ่น
Product Description
ดอกเจียรคาร์ไบท์ทรงเตเปอร์ Taper-Shape Burs
IMCO SL Taper-Shape Burs
Code No : IMCO-SL TYPE

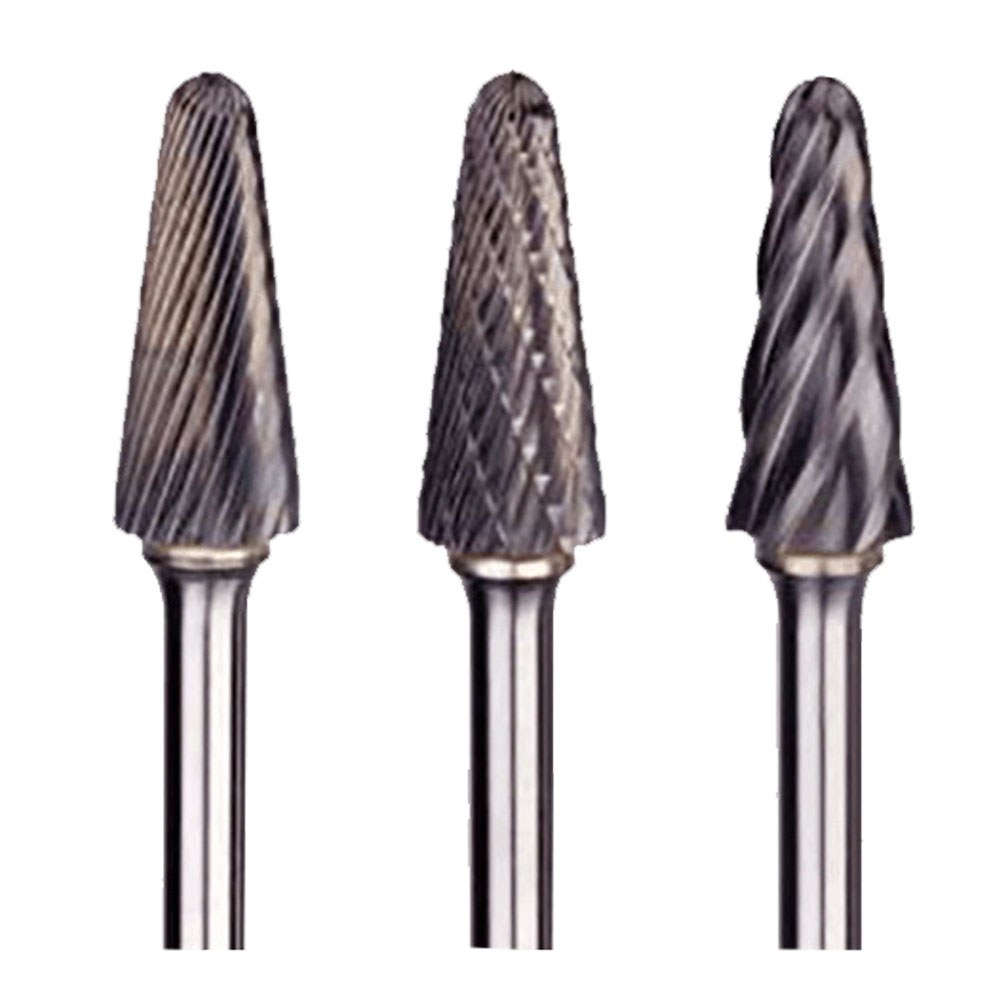

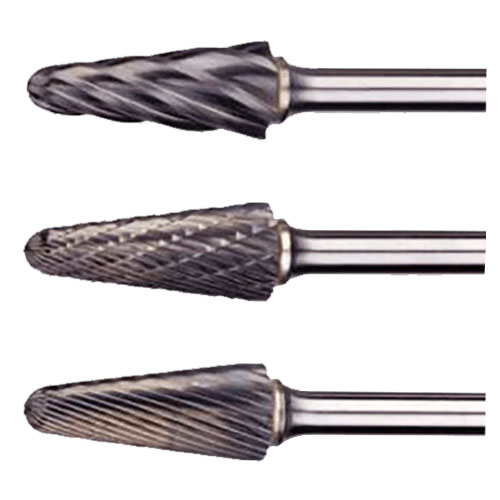

Bur Cut Styles
* Select the cut style for the finish you need from the choices below.
* Precision flute grinding ensures chatterless operations and a long tool life.
► Double cut
* Right- and left-hand flutes combine to produce a chisel-type cutting edge.
* You get faster penetration and stock removal, and better control and less operator fatigue due to reduced pull.
► Standard cut
* This style has only right-hand spiral flutes, producing good stock removal and excellent surface finishes.
* Use this cut for general deburring in cast iron, steel, copper alloys, brass alloys and other ferrous materials.
► Aluma Cut
* Wide flutes make the aluma cut ideal for easy chip clearance.
* That means fast stock removal in aluminum, brass, zinc alloys, most plastics and soft, non-ferrous materials.
* IMCO’s advanced relief design gives it greater strength, so it lasts a lot longer.
SL-METRIC
| Standard Cut No. | Double Cut No. | Aluma Cut No. | Tools No. | Cutter Dia d1 | Shank Dia d2 | Length of Cut l2 | Incl. Angle | Overall Length l1 |
|---|---|---|---|---|---|---|---|---|
| 60440 | 60458 | SL-41M | 3 | 3 | 9.5 | 10º | 38 | |
| 60441 | 60460 | SL-42M | 3 | 3 | 12 | 8º | 38 | |
| 60449 | 60469 | SL-42ML2 | 3 | 3 | 12 | 8º | 50 | |
| 60453 | 60473 | SL-42ML3 | 3 | 3 | 12 | 8º | 76 | |
| 60442 | 60461 | SL-53M | 4.7 | 3 | 12 | 14º | 38 | |
| 60443 | 60462 | 60478 | SL-1M | 6 | 6 | 16 | 14º | 50 |
| 60450 | 60470 | SL-1ML4 | 6 | 6 | 16 | 14º | 117 | |
| 60454 | 60474 | SL-1ML6 | 6 | 6 | 16 | 14º | 168 | |
| 60444 | 60463 | SL-2M | 8 | 6 | 22 | 14º | 66 | |
| 60445 | 60464 | 60479 | SL-3M | 9.5 | 6 | 27 | 14º | 71 |
| 60451 | 60471 | SL-3ML4 | 9.5 | 6 | 27 | 14º | 127 | |
| 60455 | 60475 | SL-3ML6 | 9.5 | 6 | 27 | 14º | 179 | |
| 60446 | 60465 | 60480 | SL-4M | 12.7 | 6 | 28 | 14º | 72 |
| 60452 | 60472 | SL-4ML4 | 12.7 | 6 | 28 | 14º | 129 | |
| 60456 | 60477 | SL-4ML6 | 12.7 | 6 | 28 | 14º | 180 | |
| 60447 | 60466 | 60481 | SL-6M | 16 | 6 | 30 | 14º | 76 |
| 60448 | 60467 | 60482 | SL-7M | 19 | 6 | 38 | 14º | 82 |
NOTE : รายการที่ไม่มีราคา โปรดติดต่อพนักงานขาย หรือ ขอใบเสนอราคา
| Bur Cut Styles * Select the cut style for the finish you need from the choices below. * Precision flute grinding ensures chatterless operations and a long tool life. |
| ► Double cut * Right- and left-hand flutes combine to produce a chisel-type cutting edge. * You get faster penetration and stock removal, and better control and less operator fatigue due to reduced pull. |
| ► Standard cut * This style has only right-hand spiral flutes, producing good stock removal and excellent surface finishes. * Use this cut for general deburring in cast iron, steel, copper alloys, brass alloys and other ferrous materials. |
| ► Aluma Cut * Wide flutes make the aluma cut ideal for easy chip clearance. * That means fast stock removal in aluminum, brass, zinc alloys, most plastics and soft, non-ferrous materials. * IMCO’s advanced relief design gives it greater strength, so it lasts a lot longer. |
