IMCO ดอกเจียรคาร์ไบท์ทรงเปลวไฟ รุ่น SH

Product Description

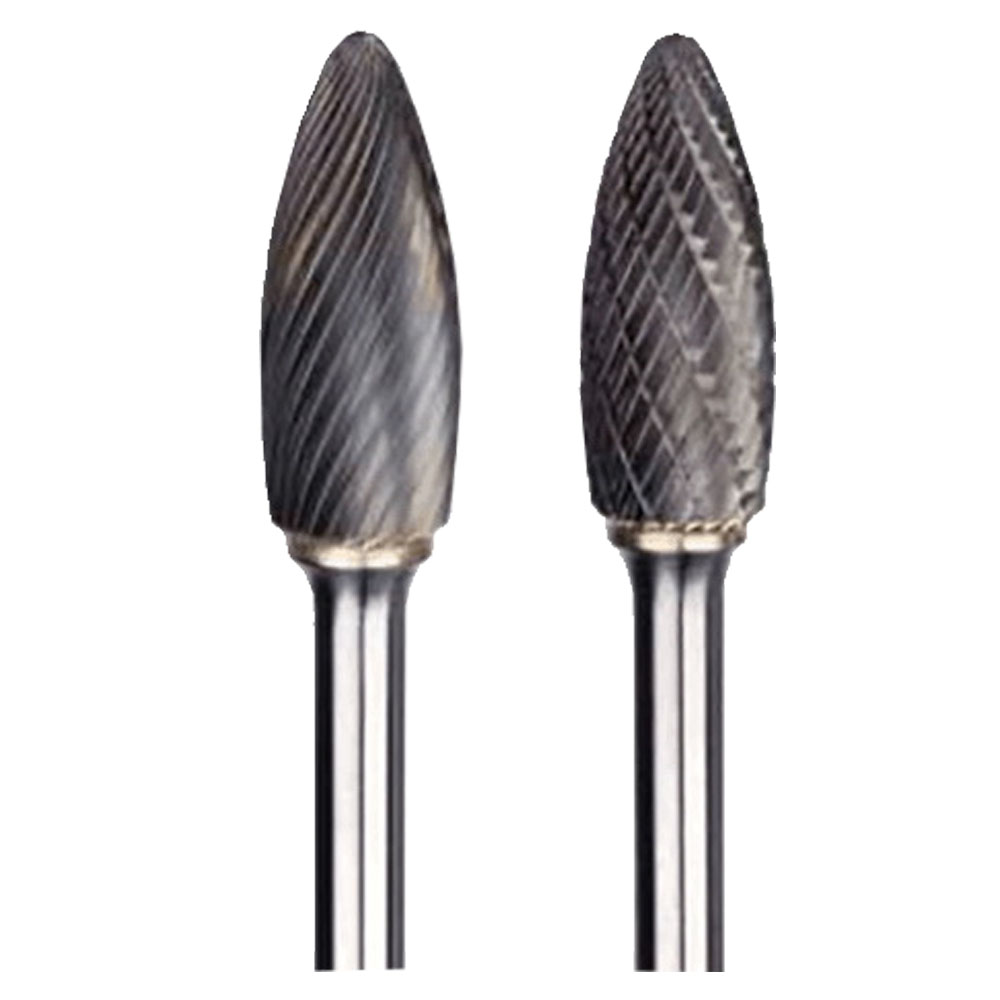

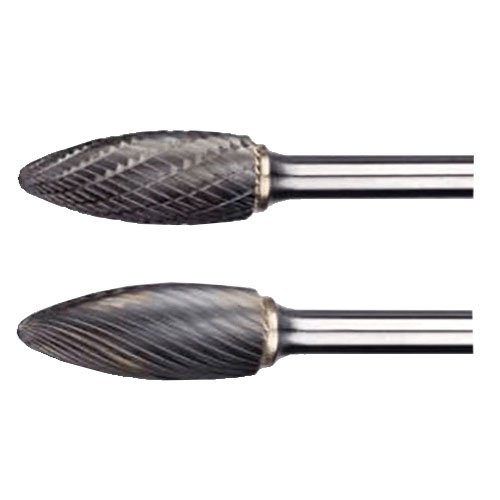

ดอกเจียรคาร์ไบท์ทรงเปลวไฟ Flame – Shape Burs

Code No : IMCO-SH TYPE

Bur Cut Styles

* Select the cut style for the finish you need from the choices below.
* Precision flute grinding ensures chatterless operations and a long tool life.

► Double cut

* Right- and left-hand flutes combine to produce a chisel-type cutting edge.
* You get faster penetration and stock removal, and better control and less operator fatigue due to reduced pull.

► Standard cut

* This style has only right-hand spiral flutes, producing good stock removal and excellent surface finishes.
* Use this cut for general deburring in cast iron, steel, copper alloys, brass alloys and other ferrous materials.

► Aluma Cut

* Wide flutes make the aluma cut ideal for easy chip clearance.
* That means fast stock removal in aluminum, brass, zinc alloys, most plastics and soft, non-ferrous materials.
* IMCO’s advanced relief design gives it greater strength, so it lasts a lot longer.

SH-METRIC

Standard Cut No.	Double Cut No.	Tools No.	Cutter Dia d1	Shank Dia d2	Length of Cut l2	Overall Length l1
60414	60427	SH-41M	3	3	6	38
60421	60434	SH-41ML2	3	3	6	50
60424	60437	SH-41ML3	3	3	6	76
60415	60428	SH-53M	4.7	3	9.5	38
60416	60429	SH-1M	6	6	16	50
60417	60430	SH-2M	8	6	19	63
60422	60435	SH-2ML4	8	6	19	120
60425	60438	SH-2ML6	8	6	19	171
60418	60431	SH-5M	12.7	3	31	75
60423	60436	SH-5ML4	12.7	6	31	132
60426	60439	SH-5ML6	12.7	6	31	183
60419	60432	SH-6M	16	6	36	79
60420	60433	SH-7M	19	6	41	84

NOTE : รายการที่ไม่มีราคา โปรดติดต่อพนักงานขาย หรือ ขอใบเสนอราคา

Download PDF
