IMCO ดอกเจียรคาร์ไบท์ทรงรูปไข่ รุ่น SE
• สินค้าคุณภาพจาก U.S.A.
• สั่งซื้อ โปรดระบุ รุ่น
Product Description

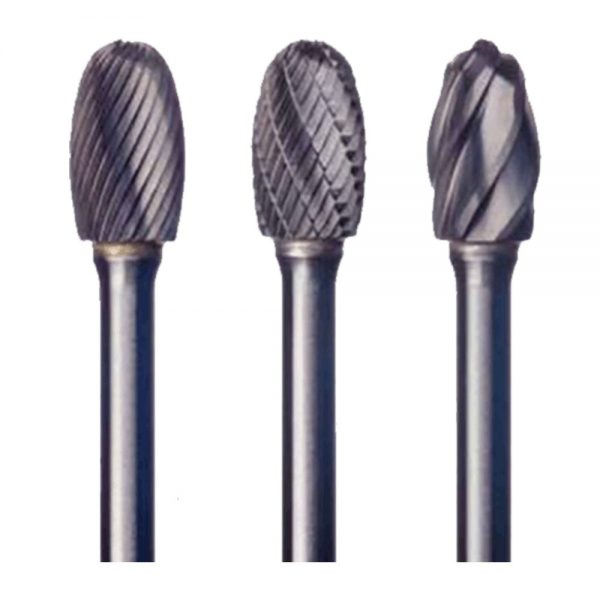

ดอกเจียรคาร์ไบท์ทรงรูปไข่ Oval- Shape Burs
Code No : IMCO-SE TYPE
Bur Cut Styles
* Select the cut style for the finish you need from the choices below.
* Precision flute grinding ensures chatterless operations and a long tool life.
► Double cut
* Right- and left-hand flutes combine to produce a chisel-type cutting edge.
* You get faster penetration and stock removal, and better control and less operator fatigue due to reduced pull.
► Standard cut
* This style has only right-hand spiral flutes, producing good stock removal and excellent surface finishes.
* Use this cut for general deburring in cast iron, steel, copper alloys, brass alloys and other ferrous materials.
► Aluma Cut
* Wide flutes make the aluma cut ideal for easy chip clearance.
* That means fast stock removal in aluminum, brass, zinc alloys, most plastics and soft, non-ferrous materials.
* IMCO’s advanced relief design gives it greater strength, so it lasts a lot longer.
SE-METRIC
| Standard Cut No. | Double Cut No. | Aluma Cut No. | Tools No. | Cutter Dia d1 | Shank Dia d2 | Length of Cut l2 | Overall Length l1 |
|---|---|---|---|---|---|---|---|
| 60270 | 60286 | SE-41M | 3 | 3 | 5 | 38 | |
| 60278 | 60304 | SE-41ML2 | 3 | 3 | 5 | 50 | |
| 60282 | 60308 | SE-41ML3 | 3 | 3 | 5 | 76 | |
| 60271 | 60287 | SE-53M | 4.7 | 3 | 7.1 | 38 | |
| 60273 | 60289 | 60312 | SE-1M | 6 | 6 | 10 | 50 |
| 60272 | 60288 | SE-51M | 6.3 | 3 | 9.5 | 47 | |
| 60279 | 60305 | SE-1ML4 | 6.3 | 6 | 10 | 111 | |
| 60283 | 60309 | SE-1ML6 | 6.3 | 6 | 10 | 163 | |
| 60274 | 60300 | 60313 | SE-3M | 9.5 | 6 | 16 | 60 |
| 60280 | 60306 | SE-3ML4 | 9.5 | 6 | 16 | 117 | |
| 60284 | 60310 | SE-3ML6 | 9.5 | 6 | 16 | 168 | |
| 60275 | 60301 | 60314 | SE-5M | 12.7 | 6 | 22 | 66 |
| 60281 | 60307 | SE-5ML4 | 12.7 | 6 | 22 | 123 | |
| 60285 | 60311 | SE-5ML6 | 12.7 | 6 | 22 | 177 | |
| 60276 | 60302 | 60315 | SE-6M | 16 | 6 | 25 | 68 |
| 60277 | 60303 | 60316 | SE-7M | 19 | 6 | 25 | 68 |
NOTE : รายการที่ไม่มีราคา โปรดติดต่อพนักงานขาย หรือ ขอใบเสนอราคา
| Bur Cut Styles * Select the cut style for the finish you need from the choices below. * Precision flute grinding ensures chatterless operations and a long tool life. |
| ► Double cut * Right- and left-hand flutes combine to produce a chisel-type cutting edge. * You get faster penetration and stock removal, and better control and less operator fatigue due to reduced pull. |
| ► Standard cut * This style has only right-hand spiral flutes, producing good stock removal and excellent surface finishes. * Use this cut for general deburring in cast iron, steel, copper alloys, brass alloys and other ferrous materials. |
| ► Aluma Cut * Wide flutes make the aluma cut ideal for easy chip clearance. * That means fast stock removal in aluminum, brass, zinc alloys, most plastics and soft, non-ferrous materials. * IMCO’s advanced relief design gives it greater strength, so it lasts a lot longer. |
