IMCO ดอกเจียรคาร์ไบท์ทรงกระบอกปลายมน รุ่น SC
• สินค้าคุณภาพจาก U.S.A.
• สั่งซื้อ โปรดระบุ รุ่น
Product Description

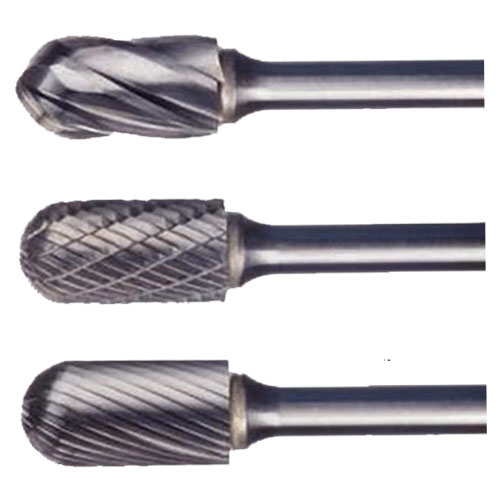

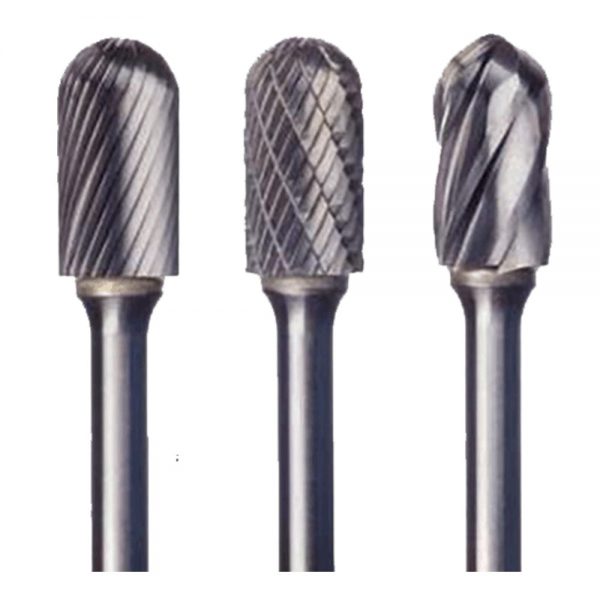

ดอกเจียรคาร์ไบท์ทรงกระบอกปลายมน Cylindrical Radius End Shape Burs
Code No : IMCO-SC TYPE
Bur Cut Styles
* Select the cut style for the finish you need from the choices below.
* Precision flute grinding ensures chatterless operations and a long tool life.
► Double cut
* Right- and left-hand flutes combine to produce a chisel-type cutting edge.
* You get faster penetration and stock removal, and better control and less operator fatigue due to reduced pull.
► Standard cut
* This style has only right-hand spiral flutes, producing good stock removal and excellent surface finishes.
* Use this cut for general deburring in cast iron, steel, copper alloys, brass alloys and other ferrous materials.
► Aluma Cut
* Wide flutes make the aluma cut ideal for easy chip clearance.
* That means fast stock removal in aluminum, brass, zinc alloys, most plastics and soft, non-ferrous materials.
* IMCO’s advanced relief design gives it greater strength, so it lasts a lot longer.
SC-METRIC
| Standard Cut No. | Double Cut No. | Aluma Cut No. | Tools No. | Cutter Dia d1 | Shank Dia d2 | Length of Cut l2 | Overall Length l1 |
|---|---|---|---|---|---|---|---|
| 60170 | 60192 | SC-41M | 2.5 | 3 | 6 | 38 | |
| 60171 | 60193 | SC-42M | 3 | 3 | 11 | 38 | |
| 60184 | 60206 | SC-42ML2 | 3 | 3 | 14 | 50 | |
| 60188 | 60210 | SC-42ML3 | 3 | 3 | 14 | 76 | |
| 60172 | 60194 | SC-11M | 3 | 6 | 12 | 50 | |
| 60173 | 60195 | SC-52M | 4 | 3 | 12.7 | 38 | |
| 60174 | 60196 | SC-53M | 4.7 | 3 | 12.7 | 38 | |
| 60175 | 60197 | SC-14M | 4.7 | 6 | 16 | 50 | |
| 60177 | 60199 | SC-1M | 6 | 6 | 16 | 50 | |
| 60215 | SC-1M | 6 | 6 | 19 | 50 | ||
| 60185 | 60207 | SC-1ML4 | 6 | 6 | 12.7 | 114 | |
| 60189 | 60211 | SC-1ML6 | 6 | 6 | 12.7 | 163 | |
| 60176 | 60198 | SC-51M | 6.3 | 3 | 12.7 | 50 | |
| 60178 | 60200 | SC-2M | 8 | 6 | 20 | 63 | |
| 60179 | 60201 | 60216 | SC-3M | 9.5 | 6 | 19 | 63 |
| 60186 | 60208 | SC-3ML4 | 9.5 | 6 | 19 | 120 | |
| 60190 | 60212 | SC-3ML6 | 9.5 | 6 | 19 | 171 | |
| 60180 | 60202 | SC-4M | 11 | 6 | 25 | 68 | |
| 60181 | 60203 | 60217 | SC-5M | 12.7 | 6 | 25 | 68 |
| 60187 | 60209 | SC-5ML4 | 12.7 | 6 | 25 | 127 | |
| 60191 | 60213 | SC-5ML6 | 12.7 | 6 | 25 | 177 | |
| 60182 | 60204 | 60218 | SC-6M | 16 | 6 | 25 | 68 |
| 60183 | 60205 | 60219 | SC-7M | 19 | 6 | 25 | 68 |
NOTE : รายการที่ไม่มีราคา โปรดติดต่อพนักงานขาย หรือ ขอใบเสนอราคา
| Bur Cut Styles * Select the cut style for the finish you need from the choices below. * Precision flute grinding ensures chatterless operations and a long tool life. |
| ► Double cut * Right- and left-hand flutes combine to produce a chisel-type cutting edge. * You get faster penetration and stock removal, and better control and less operator fatigue due to reduced pull. |
| ► Standard cut * This style has only right-hand spiral flutes, producing good stock removal and excellent surface finishes. * Use this cut for general deburring in cast iron, steel, copper alloys, brass alloys and other ferrous materials. |
| ► Aluma Cut * Wide flutes make the aluma cut ideal for easy chip clearance. * That means fast stock removal in aluminum, brass, zinc alloys, most plastics and soft, non-ferrous materials. * IMCO’s advanced relief design gives it greater strength, so it lasts a lot longer. |
